उत्पाद विवरण:
|
| तकनीकी: | वैक्यूम प्रेशर स्विंग सोखना (VPSA) | प्रवाह दर: | 100-10000nm3/h |
|---|---|---|---|
| नियुक्ति पद्धति: | खड़ा | स्टार्टअप का समय: | 15-30 मिनट |
| परीक्षण दबाव: | 0.8MPA-1.6MPA | वायु कंप्रेसर शक्ति: | 22-110KW |
| प्रमुख शब्द: | वीपीएसए ऑक्सीजन जनरेटर | रंग: | उज्ज्वल या अनुकूलित |
| उपभोग: | ऊर्जा की बचत | भरने की दर: | 95% |
| प्रमुखता देना: | 92.5%-93.5% High Purity VPSA Oxygen Generator,15-30 minutes Start-Up Time Oxygen Production Equipment,22-110kW Air Compressor Power Oxygen Plant |
||

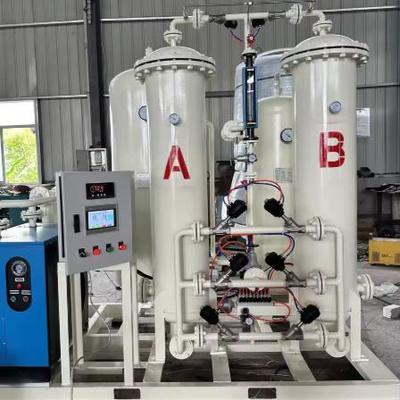

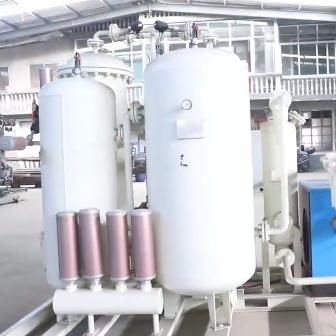

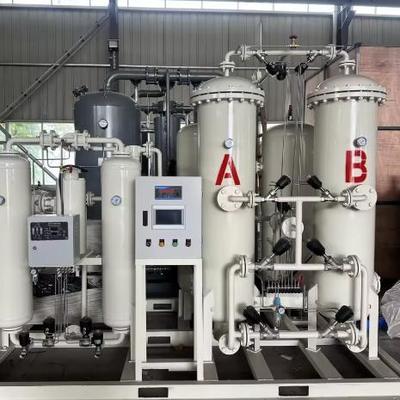

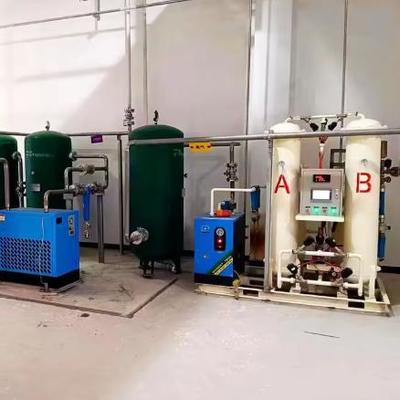

The Vacuum Pressure Swing Adsorption (VPSA) Oxygen Generator utilizes a specialized mixed bed of VPSA molecular sieve and desiccant to selectively adsorb nitrogen, CO₂, and water vapor from air, producing oxygen-enriched output at 90-95% purity. The system operates through cyclic adsorption and vacuum desorption processes.
| Capacity (Nm³/h) | Purity | O₂ Outlet Pressure (Mpa) | Inlet/Outlet Connections (mm) | Dimensions (mm) |
|---|---|---|---|---|
| 2.2 - 3 | 95%±1% | 0.3 - 0.5 | DN15/G1 2 | 1200×1000×1840 |
| 3.5 - 5 | 95%±1% | 0.3 - 0.5 | DN20/G1 2 | 1350×1200×2050 |
| 6 - 7 | 95%±1% | 0.3 - 0.5 | DN25/G1 2 | 1500×1350×2350 |
| 8 - 10 | 95%±1% | 0.3 - 0.5 | DN25/G1 2 | 1750×1550×2300 |
| 11 - 13 | 95%±1% | 0.3 - 0.5 | DN25/G1 2 | 1750×1550×2300 |
| 14 - 15 | 95%±1% | 0.3 - 0.5 | DN40/G1 2 | 1850×1825×2350 |
| 16 - 17 | 95%±1% | 0.3 - 0.5 | DN40/G1 2 | 1850×1825×2350 |
| 18 - 20 | 95%±1% | 0.3 - 0.5 | DN40/G1 2 | 2000×1900×2350 |
| 21 - 25 | 95%±1% | 0.3 - 0.5 | DN40/G1 2 | 2100×2050×2400 |
| 26 - 30 | 95%±1% | 0.3 - 0.5 | DN40/G1 2 | 2100×2050×2400 |
| 31 - 35 | 95%±1% | 0.3 - 0.5 | DN50/G1 | 2000×1300×2400 |
| 36 - 42 | 95%±1% | 0.3 - 0.5 | DN50/G1 | 2000×1300×2800 |
| 43 - 46 | 95%±1% | 0.3 - 0.5 | DN50/G1 | 2000×1300×2800 |
| 47 - 52 | 95%±1% | 0.3 - 0.5 | DN50/G1 | 1800×1700×2400 |
| 53 - 56 | 95%±1% | 0.3 - 0.5 | DN50/G1-1 2 | 2100×1800×2600 |
| 57 - 63 | 95%±1% | 0.3 - 0.5 | DN65/G1-1 2 | 2200×1500×2700 |
| 3 | 98%±1% | 0.5 - 1.0 | DN20/G1 2 | / |
| 5 | 98%±1% | 0.5 - 1.0 | DN20/G1 2 | / |
| 10 | 98%±1% | 0.5 - 1.0 | DN25/G1 2 | / |
| 15 | 98%±1% | 0.5 - 1.0 | DN25/G1 2 | / |
| 20 | 98%±1% | 0.5 - 1.0 | DN40/G1 2 | / |
| 25 | 98%±1% | 0.5 - 1.0 | DN40/G1 2 | / |
| 30 | 98%±1% | 0.5 - 1.0 | DN50/G1 2 | / |
| 40 | 98%±1% | 0.5 - 1.0 | DN50/G1 | / |
Each unit is securely packaged with wooden cases and anti-collision foam blocks, wrapped in stretch film and pearl cotton according to export standards. Multiple units are shipped in 20-foot or 40-foot containers with boosters and fittings packed separately in wooden cases. All fragile components including gauges, flowmeters, and controllers receive special protective packaging.
We also manufacture PSA Oxygen Generators, storage tanks, and heat exchangers. For inquiries about VPSA Oxygen Systems or related products, please contact us at info@gneeheatex.com.
व्यक्ति से संपर्क करें: Mrs. Kelly
दूरभाष: +86 15824687445
